Ugelli in Plastica

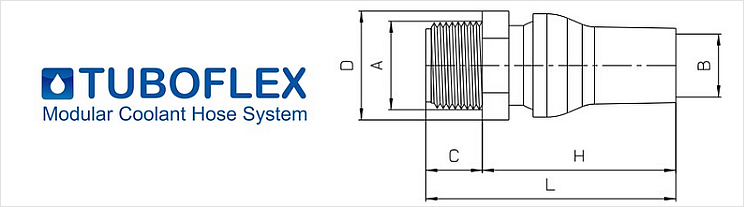

Dimensioni Ugelli in Plastica
Codice |
Filetto (A) |
Foro (B) |
C |
D |
H |
L |
Pressione |
18N15 |
1/8" NPT |
ID 1,5 mm |
9 mm |
14 mm |
41 mm |
50 mm |
6 bar |
18N30 |
1/8" NPT |
ID 3 mm |
9 mm |
14mm |
41 mm |
50 mm |
6 bar |
18N50 |
1/8" NPT |
ID 5 mm |
9 mm |
14 mm |
41 mm |
50 mm |
6 bar |
14N15 |
1/4" NPT |
ID 1,5 mm |
9 mm |
14 mm |
41 mm |
50 mm |
6 bar |
14N30 |
1/4" NPT |
ID 3 mm |
9 mm |
14 mm |
41 mm |
50 mm |
6 bar |
14N50 |
1/4" NPT |
ID 5 mm |
9 mm |
14 mm |
41 mm |
50 mm |
6 bar |
38N50 |
3/8" NPT |
ID 5 mm |
13 mm |
19 mm |
64 mm |
76,5 mm |
4 bar |
38N80 |
3/8" NPT |
ID 8 mm |
13 mm |
19 mm |
64 mm |
76,5 mm |
4 bar |
38N11 |
3/8" NPT |
ID 11 mm |
13 mm |
19 mm |
44,50 mm |
57 mm |
4 bar |
12N50 |
1/2" NPT |
ID 5 mm |
13 mm |
19 mm |
64 mm |
76,5 mm |
4 bar |
12N80 |
1/2" NPT |
ID 8 mm |
13 mm |
19 mm |
64 mm |
76,5 mm |
4 bar |
12N11 |
1/2" NPT |
ID 11 mm |
13 mm |
19 mm |
44,5 mm |
57 mm |
4 bar |
34N16 |
3/4" NPT |
ID 16 mm |
16 mm |
28 mm |
58 mm |
75 mm |
2 bar |
34N19 |
3/4" NPT |
ID 19 mm |
16 mm |
28 mm |
58 mm |
75 mm |
2 bar |
